Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.8 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

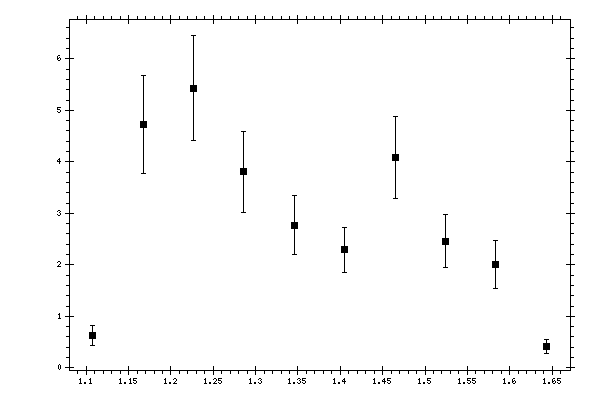

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.10759 | 0.634905 | 0.194733 |
| 1.1671 | 4.72392 | 0.954869 |
| 1.22661 | 5.4273 | 1.01987 |
| 1.28612 | 3.81012 | 0.78712 |
| 1.34563 | 2.7727 | 0.566645 |
| 1.40514 | 2.28889 | 0.430011 |
| 1.46465 | 4.08975 | 0.800007 |
| 1.52416 | 2.45788 | 0.516352 |
| 1.58367 | 2.01325 | 0.468932 |
| 1.64318 | 0.413386 | 0.128238 |
