Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.8 GeV | |
| Ebeam : | 5.75 GeV |
|

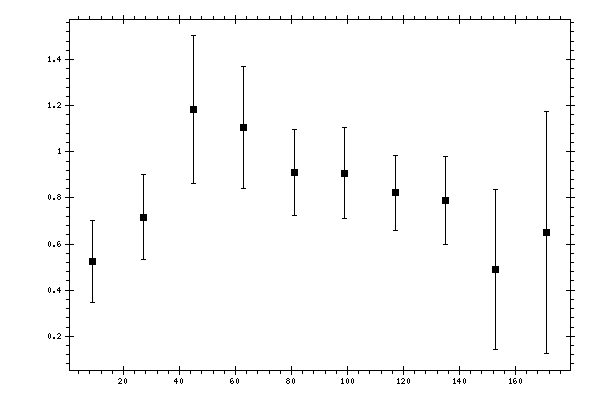

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.524117 | 0.176713 |
| 27 | 0.715298 | 0.18428 |
| 45 | 1.18298 | 0.319827 |
| 63 | 1.10689 | 0.264586 |
| 81 | 0.910574 | 0.188269 |
| 99 | 0.90718 | 0.197317 |
| 117 | 0.821533 | 0.162927 |
| 135 | 0.789406 | 0.190664 |
| 153 | 0.490484 | 0.345818 |
| 171 | 0.650043 | 0.523074 |
