Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.825 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

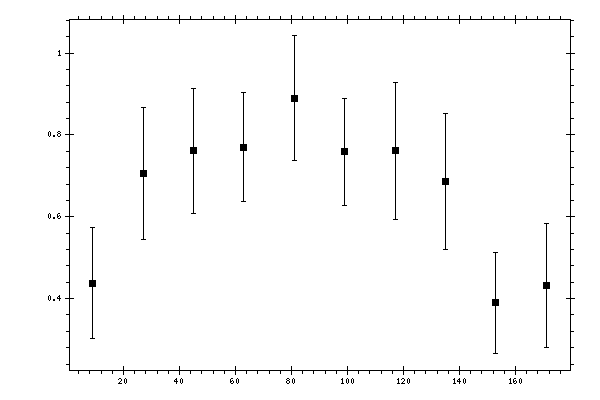

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.437617 | 0.135422 |
| 27 | 0.705413 | 0.160932 |
| 45 | 0.760966 | 0.151952 |
| 63 | 0.770499 | 0.133336 |
| 81 | 0.890412 | 0.151921 |
| 99 | 0.75903 | 0.130289 |
| 117 | 0.761178 | 0.16681 |
| 135 | 0.685755 | 0.166266 |
| 153 | 0.389469 | 0.122819 |
| 171 | 0.431528 | 0.151426 |
