Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.65 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

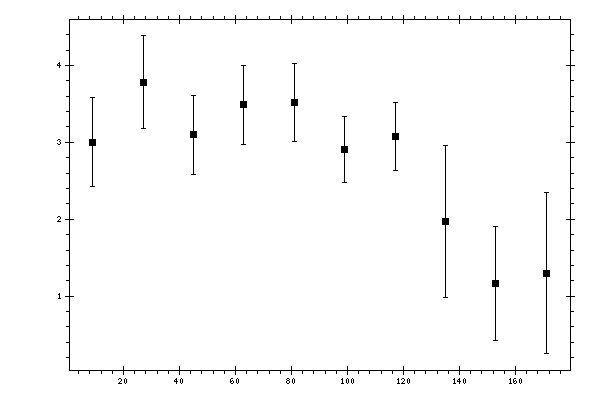

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 3.00429 | 0.583416 |
| 27 | 3.78304 | 0.600694 |
| 45 | 3.09535 | 0.518455 |
| 63 | 3.4887 | 0.512599 |
| 81 | 3.51778 | 0.507762 |
| 99 | 2.91149 | 0.427282 |
| 117 | 3.07921 | 0.439157 |
| 135 | 1.96971 | 0.989247 |
| 153 | 1.16402 | 0.742467 |
| 171 | 1.30105 | 1.04081 |
