Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.825 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

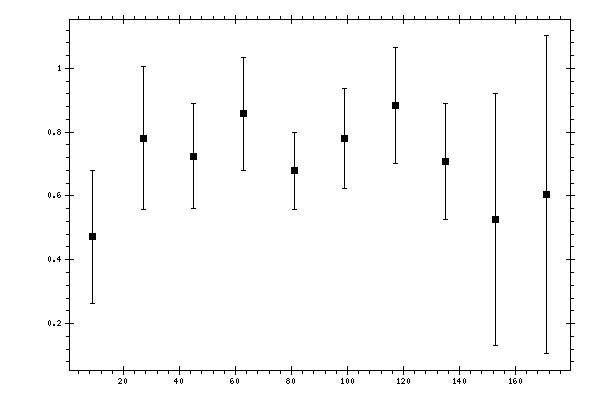

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.471653 | 0.208327 |
| 27 | 0.781916 | 0.222993 |
| 45 | 0.725093 | 0.163923 |
| 63 | 0.857503 | 0.178295 |
| 81 | 0.679212 | 0.120802 |
| 99 | 0.780564 | 0.155967 |
| 117 | 0.883162 | 0.182561 |
| 135 | 0.706766 | 0.181942 |
| 153 | 0.526425 | 0.394765 |
| 171 | 0.604684 | 0.497645 |
