Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.85 GeV | |
| Ebeam : | 5.75 GeV |
|

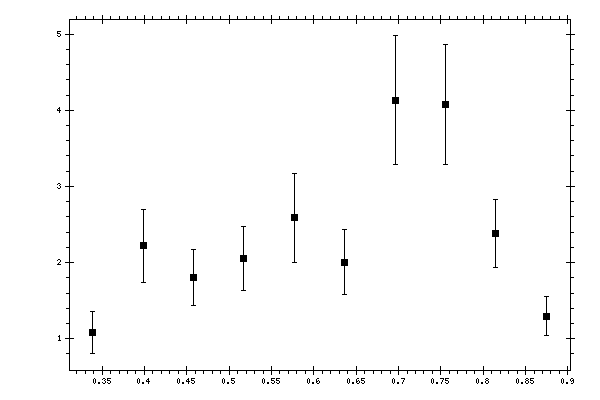

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 0.338894 | 1.08418 | 0.273848 |
| 0.398403 | 2.2185 | 0.4808 |
| 0.457913 | 1.80669 | 0.368602 |
| 0.517421 | 2.05173 | 0.424817 |
| 0.57693 | 2.58667 | 0.585567 |
| 0.63644 | 2.00374 | 0.424299 |
| 0.695948 | 4.13252 | 0.844042 |
| 0.755457 | 4.07445 | 0.783162 |
| 0.814966 | 2.38432 | 0.445609 |
| 0.874475 | 1.29618 | 0.258726 |
