Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.875 GeV | |
| Ebeam : | 5.75 GeV |
|

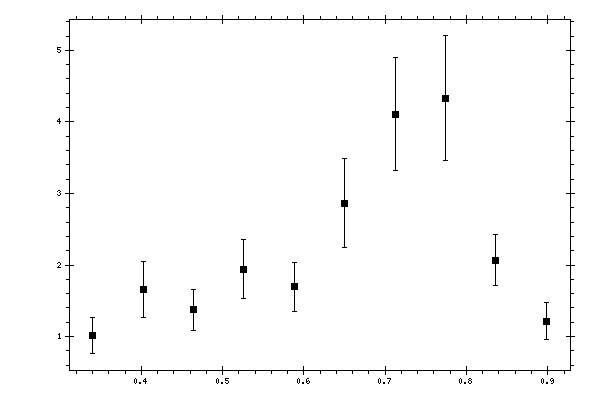

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 0.340144 | 1.01888 | 0.249776 |
| 0.402153 | 1.66105 | 0.391852 |
| 0.464162 | 1.37731 | 0.285506 |
| 0.526172 | 1.94108 | 0.40954 |
| 0.58818 | 1.69369 | 0.33665 |
| 0.650189 | 2.86398 | 0.61884 |
| 0.712198 | 4.10873 | 0.787827 |
| 0.774207 | 4.33254 | 0.86943 |
| 0.836216 | 2.06753 | 0.354374 |
| 0.898225 | 1.21721 | 0.255 |
