Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.875 GeV | |
| Ebeam : | 5.75 GeV |
|

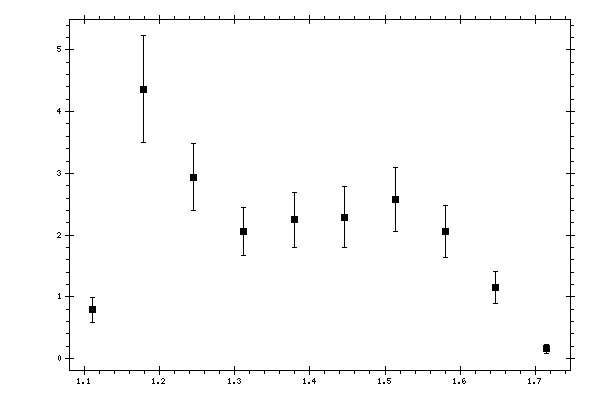

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.11134 | 0.790311 | 0.20293 |
| 1.17835 | 4.36159 | 0.867084 |
| 1.24536 | 2.93742 | 0.545617 |
| 1.31237 | 2.05755 | 0.387081 |
| 1.37938 | 2.24654 | 0.441128 |
| 1.44639 | 2.29136 | 0.498545 |
| 1.5134 | 2.57362 | 0.516875 |
| 1.58041 | 2.05526 | 0.424043 |
| 1.64742 | 1.14996 | 0.253144 |
| 1.71443 | 0.15578 | 0.0705365 |
