Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.875 GeV | |
| Ebeam : | 5.75 GeV |
|

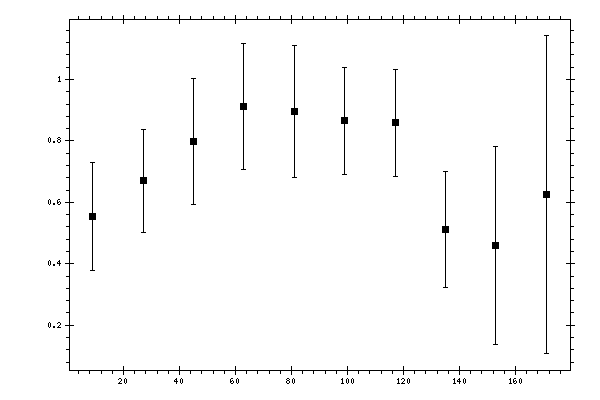

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.55305 | 0.175559 |
| 27 | 0.670351 | 0.167124 |
| 45 | 0.79819 | 0.204028 |
| 63 | 0.911464 | 0.204535 |
| 81 | 0.894426 | 0.214937 |
| 99 | 0.8659 | 0.173883 |
| 117 | 0.859178 | 0.17462 |
| 135 | 0.511083 | 0.188416 |
| 153 | 0.460065 | 0.322262 |
| 171 | 0.625628 | 0.516256 |
