Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.875 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

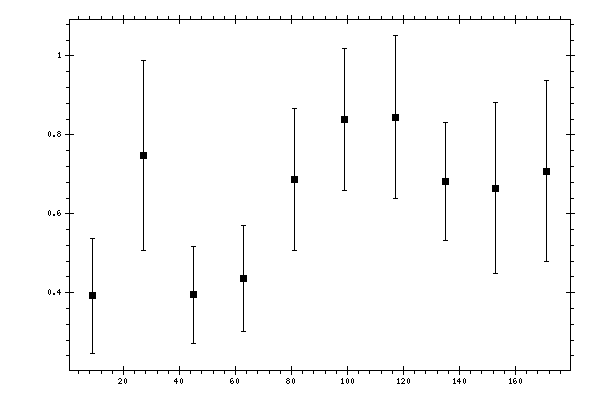

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.392549 | 0.145416 |
| 27 | 0.747274 | 0.240376 |
| 45 | 0.394875 | 0.123476 |
| 63 | 0.436666 | 0.1336 |
| 81 | 0.687098 | 0.18067 |
| 99 | 0.839472 | 0.17952 |
| 117 | 0.844236 | 0.206492 |
| 135 | 0.682835 | 0.149214 |
| 153 | 0.665309 | 0.215934 |
| 171 | 0.707584 | 0.229189 |
