Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.675 GeV | |
| Ebeam : | 5.75 GeV |
|

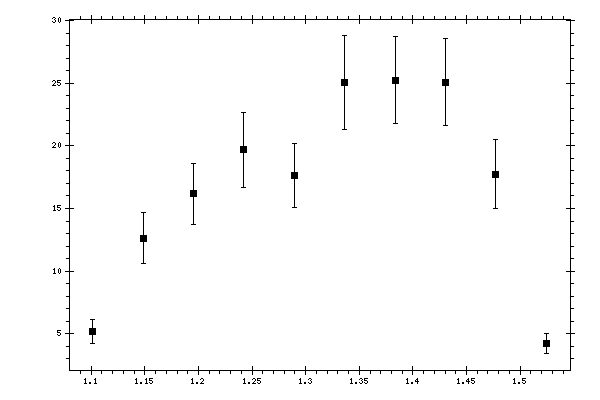

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.10134 | 5.1878 | 0.951485 |
| 1.14835 | 12.644 | 2.03321 |
| 1.19536 | 16.1617 | 2.40906 |
| 1.24237 | 19.6978 | 2.99291 |
| 1.28938 | 17.6256 | 2.58325 |
| 1.33639 | 25.058 | 3.71729 |
| 1.3834 | 25.2514 | 3.45431 |
| 1.43041 | 25.069 | 3.4594 |
| 1.47742 | 17.7506 | 2.75832 |
| 1.52443 | 4.24658 | 0.785017 |
