Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.9 GeV | |
| Ebeam : | 5.75 GeV |
|

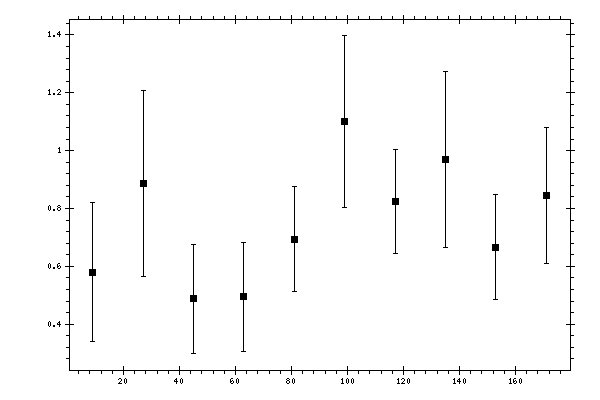

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.580308 | 0.241556 |
| 27 | 0.886173 | 0.321243 |
| 45 | 0.488042 | 0.187996 |
| 63 | 0.495038 | 0.187843 |
| 81 | 0.693211 | 0.181821 |
| 99 | 1.10025 | 0.296526 |
| 117 | 0.824066 | 0.181095 |
| 135 | 0.969149 | 0.30537 |
| 153 | 0.666389 | 0.180717 |
| 171 | 0.844708 | 0.236235 |
