Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.675 GeV | |
| Ebeam : | 5.75 GeV |
|

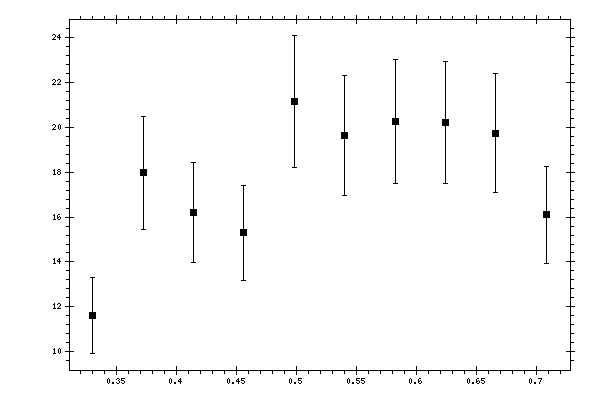

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 0.330144 | 11.6277 | 1.68946 |
| 0.372153 | 17.9696 | 2.51226 |
| 0.414163 | 16.2087 | 2.23257 |
| 0.456172 | 15.2934 | 2.11809 |
| 0.498181 | 21.1344 | 2.93915 |
| 0.54019 | 19.6353 | 2.66754 |
| 0.582199 | 20.2535 | 2.74509 |
| 0.624207 | 20.2235 | 2.71222 |
| 0.666217 | 19.7438 | 2.64088 |
| 0.708226 | 16.0963 | 2.17237 |
