Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.925 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.

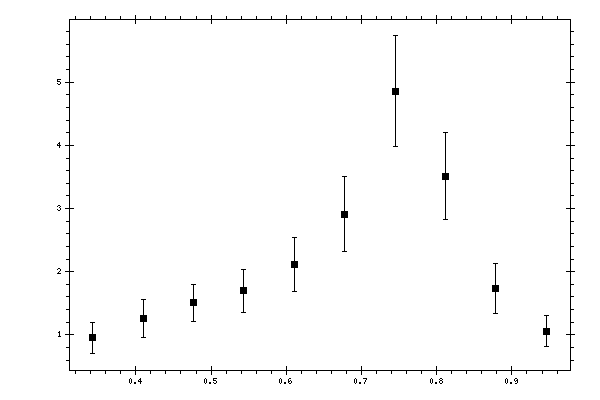

Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 0.342644 | 0.953332 | 0.243993 |
| 0.409653 | 1.26234 | 0.301546 |
| 0.476662 | 1.50375 | 0.292158 |
| 0.543671 | 1.69773 | 0.34192 |
| 0.610681 | 2.10935 | 0.428074 |
| 0.677689 | 2.90994 | 0.59038 |
| 0.744699 | 4.85682 | 0.877785 |
| 0.811707 | 3.51134 | 0.688459 |
| 0.878717 | 1.73119 | 0.390084 |
| 0.945726 | 1.05812 | 0.245439 |
