Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.925 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

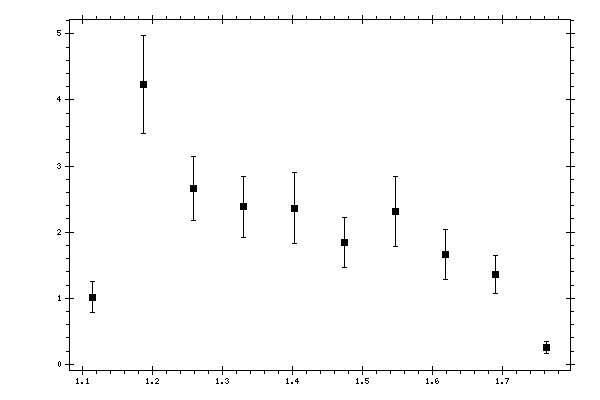

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.11384 | 1.01491 | 0.236783 |
| 1.18585 | 4.23081 | 0.73868 |
| 1.25786 | 2.65792 | 0.480344 |
| 1.32987 | 2.38709 | 0.460015 |
| 1.40188 | 2.36426 | 0.540635 |
| 1.47389 | 1.84202 | 0.382662 |
| 1.5459 | 2.31807 | 0.528481 |
| 1.61791 | 1.66304 | 0.376275 |
| 1.68992 | 1.35719 | 0.291127 |
| 1.76193 | 0.259223 | 0.0887651 |
