Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.925 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

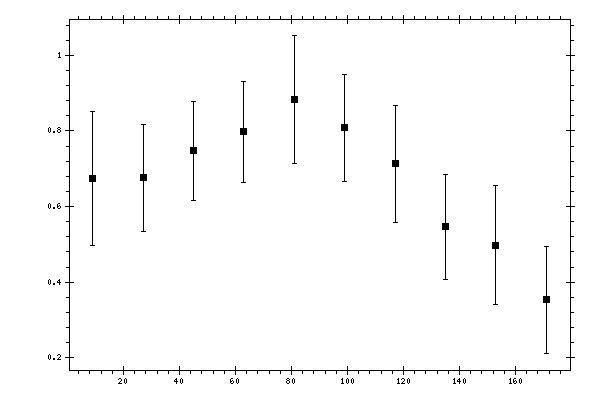

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.674534 | 0.178081 |
| 27 | 0.675948 | 0.141844 |
| 45 | 0.747609 | 0.13134 |
| 63 | 0.797401 | 0.134033 |
| 81 | 0.883272 | 0.168271 |
| 99 | 0.808073 | 0.142277 |
| 117 | 0.713118 | 0.155296 |
| 135 | 0.5461 | 0.138232 |
| 153 | 0.497991 | 0.157141 |
| 171 | 0.35305 | 0.140899 |
