Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.925 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

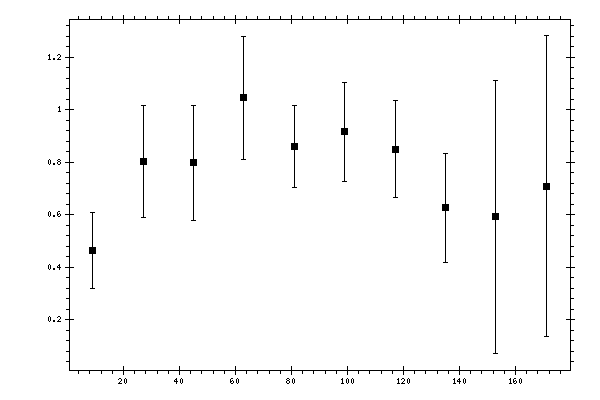

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.462318 | 0.144332 |
| 27 | 0.802323 | 0.213777 |
| 45 | 0.797564 | 0.218989 |
| 63 | 1.04527 | 0.233616 |
| 81 | 0.859941 | 0.157662 |
| 99 | 0.91626 | 0.188529 |
| 117 | 0.849749 | 0.185133 |
| 135 | 0.626967 | 0.207652 |
| 153 | 0.59214 | 0.519247 |
| 171 | 0.708492 | 0.572528 |
