Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.975 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.

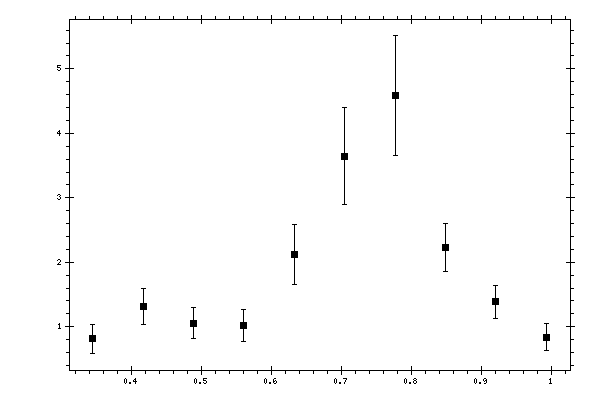

Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 0.345144 | 0.815299 | 0.22432 |
| 0.417153 | 1.31619 | 0.283058 |
| 0.489162 | 1.05586 | 0.244593 |
| 0.561171 | 1.0174 | 0.251618 |
| 0.63318 | 2.12089 | 0.463475 |
| 0.705189 | 3.64659 | 0.756453 |
| 0.777198 | 4.58258 | 0.929404 |
| 0.849207 | 2.2277 | 0.373954 |
| 0.921216 | 1.38945 | 0.255739 |
| 0.993225 | 0.841081 | 0.20414 |
