Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.975 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

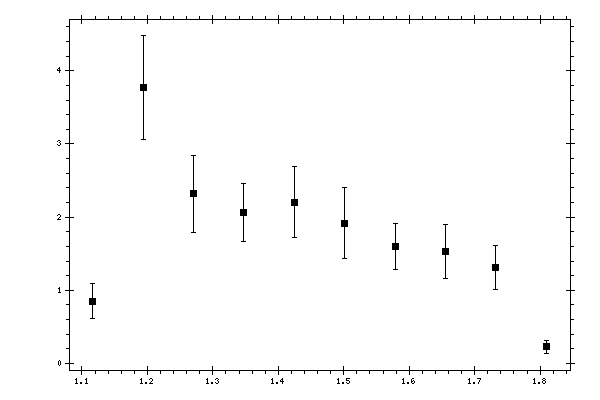

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.11634 | 0.849258 | 0.238765 |
| 1.19335 | 3.76937 | 0.707728 |
| 1.27036 | 2.31644 | 0.525862 |
| 1.34737 | 2.06369 | 0.398474 |
| 1.42438 | 2.20457 | 0.481657 |
| 1.50139 | 1.9157 | 0.48592 |
| 1.5784 | 1.59357 | 0.313591 |
| 1.65541 | 1.52583 | 0.367038 |
| 1.73242 | 1.3098 | 0.302374 |
| 1.80943 | 0.230348 | 0.0894443 |
