Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.975 GeV | |
| Ebeam : | 5.75 GeV |
|

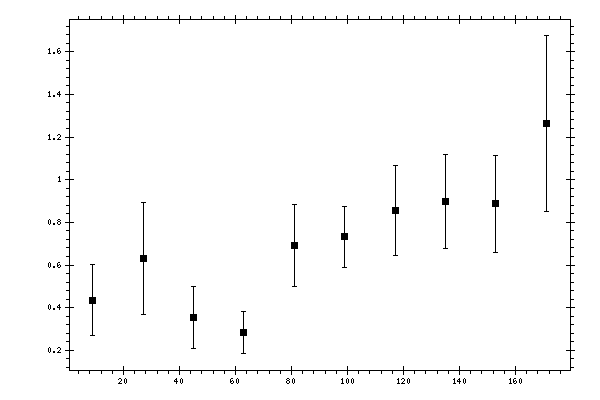

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.435635 | 0.16818 |
| 27 | 0.629014 | 0.263048 |
| 45 | 0.3541 | 0.145891 |
| 63 | 0.283386 | 0.0965387 |
| 81 | 0.691625 | 0.191513 |
| 99 | 0.731624 | 0.144404 |
| 117 | 0.85521 | 0.211739 |
| 135 | 0.896185 | 0.219925 |
| 153 | 0.886372 | 0.227965 |
| 171 | 1.26206 | 0.412114 |
