Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.675 GeV | |
| Ebeam : | 5.75 GeV |
|

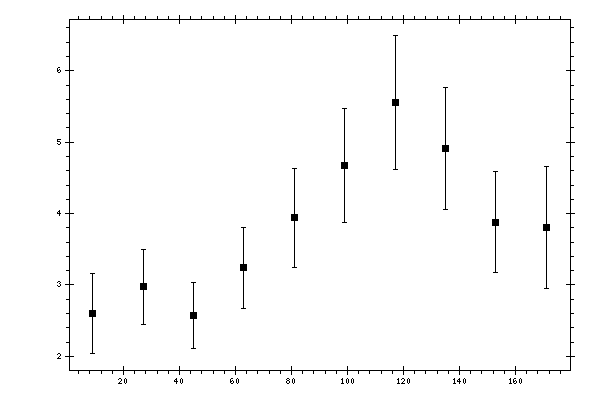

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 2.6027 | 0.55711 |
| 27 | 2.97553 | 0.527024 |
| 45 | 2.57618 | 0.464593 |
| 63 | 3.23805 | 0.566597 |
| 81 | 3.94256 | 0.694333 |
| 99 | 4.67481 | 0.802105 |
| 117 | 5.55269 | 0.935813 |
| 135 | 4.90871 | 0.849961 |
| 153 | 3.87692 | 0.70897 |
| 171 | 3.80548 | 0.854151 |
