Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.7 GeV | |
| Ebeam : | 5.75 GeV |
|

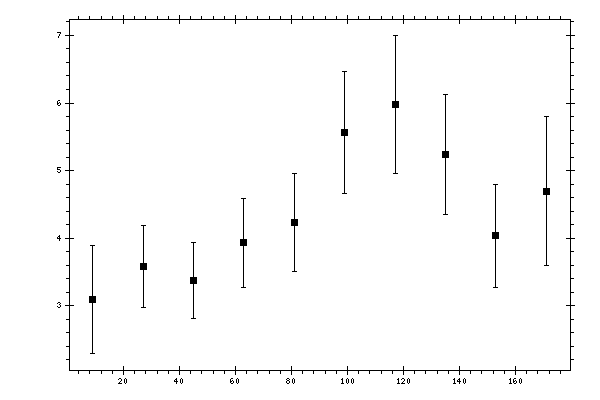

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 3.10016 | 0.799688 |
| 27 | 3.5777 | 0.609232 |
| 45 | 3.37696 | 0.564736 |
| 63 | 3.93157 | 0.662321 |
| 81 | 4.22826 | 0.722576 |
| 99 | 5.56668 | 0.905683 |
| 117 | 5.9777 | 1.01555 |
| 135 | 5.23993 | 0.885827 |
| 153 | 4.03854 | 0.760545 |
| 171 | 4.69506 | 1.10523 |
