Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.725 GeV | |
| Ebeam : | 5.75 GeV |
|

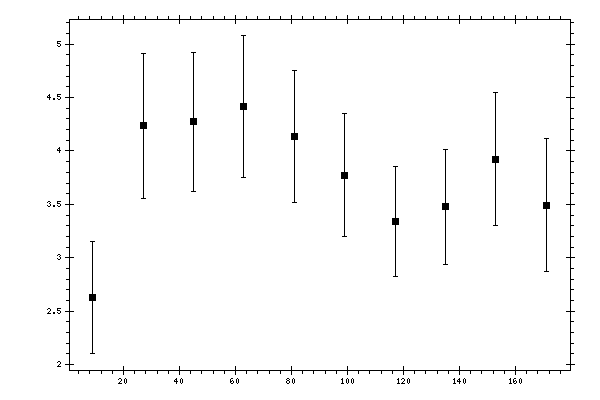

Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 2.63025 | 0.52255 |
| 27 | 4.23586 | 0.680596 |
| 45 | 4.27394 | 0.649202 |
| 63 | 4.41266 | 0.664519 |
| 81 | 4.13249 | 0.618958 |
| 99 | 3.77155 | 0.576511 |
| 117 | 3.33952 | 0.516253 |
| 135 | 3.47697 | 0.537192 |
| 153 | 3.92401 | 0.618791 |
| 171 | 3.49416 | 0.625767 |
