Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.725 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

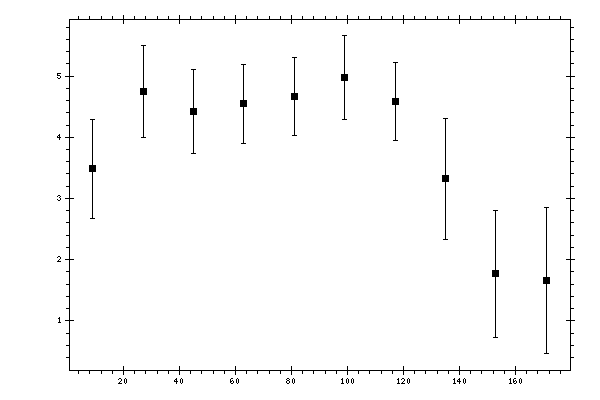

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 3.4839 | 0.812191 |
| 27 | 4.74465 | 0.751397 |
| 45 | 4.42268 | 0.688533 |
| 63 | 4.54723 | 0.643196 |
| 81 | 4.66878 | 0.641205 |
| 99 | 4.97398 | 0.683939 |
| 117 | 4.58406 | 0.635646 |
| 135 | 3.31971 | 0.989247 |
| 153 | 1.76765 | 1.03422 |
| 171 | 1.65825 | 1.18656 |
