Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.75 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

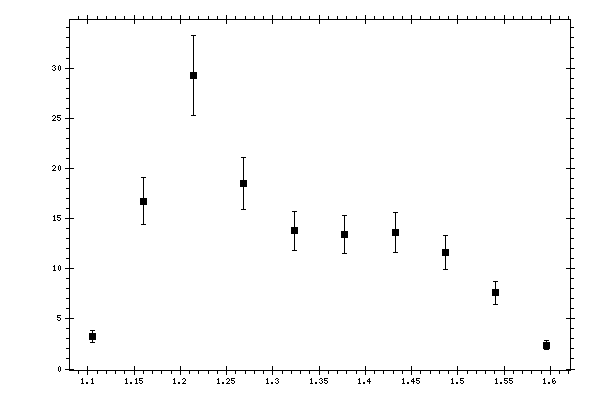

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 1.10509 | 3.23054 | 0.557778 |
| 1.1596 | 16.7152 | 2.34548 |
| 1.21411 | 29.2614 | 3.96379 |
| 1.26862 | 18.5057 | 2.59705 |
| 1.32313 | 13.7627 | 1.96218 |
| 1.37764 | 13.4109 | 1.88712 |
| 1.43215 | 13.6287 | 1.97171 |
| 1.48666 | 11.5954 | 1.67304 |
| 1.54117 | 7.58214 | 1.14628 |
| 1.59568 | 2.36483 | 0.449287 |
