Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.75 GeV | |
| Ebeam : | 5.75 GeV |
|

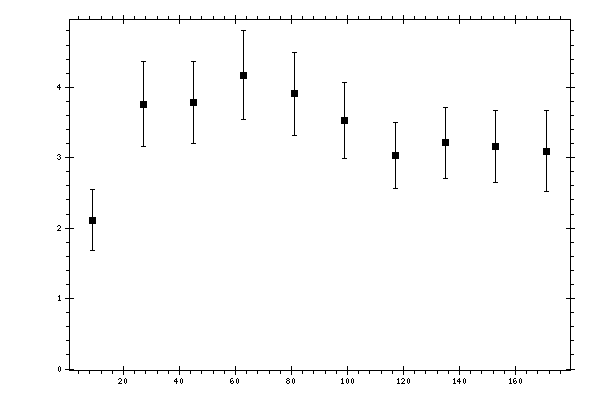

Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Stat. error,
mcb/rad |
|---|---|---|
| 9 | 2.11168 | 0.433214 |
| 27 | 3.75994 | 0.603643 |
| 45 | 3.77864 | 0.582297 |
| 63 | 4.16762 | 0.63146 |
| 81 | 3.90847 | 0.592266 |
| 99 | 3.52922 | 0.540251 |
| 117 | 3.03193 | 0.468016 |
| 135 | 3.21116 | 0.507333 |
| 153 | 3.15988 | 0.507458 |
| 171 | 3.09181 | 0.573491 |
