Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.775 GeV | |
| Ebeam : | 5.75 GeV |
|

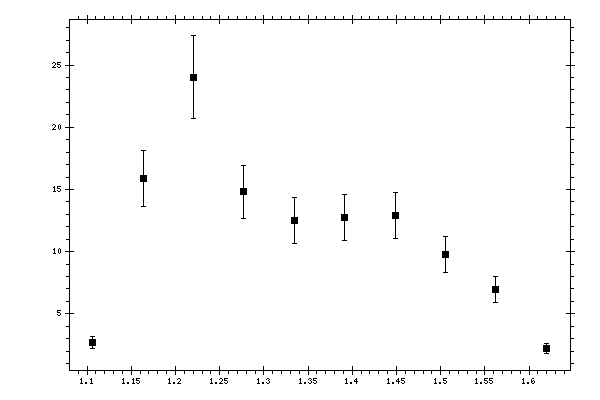

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.10634 | 2.72457 | 0.47989 |
| 1.16335 | 15.8999 | 2.26844 |
| 1.22036 | 24.0352 | 3.31885 |
| 1.27737 | 14.7987 | 2.12163 |
| 1.33438 | 12.4802 | 1.83658 |
| 1.39139 | 12.7517 | 1.87891 |
| 1.4484 | 12.9087 | 1.85923 |
| 1.50541 | 9.79663 | 1.4435 |
| 1.56242 | 6.94459 | 1.07267 |
| 1.61943 | 2.24199 | 0.407556 |
