Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.775 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

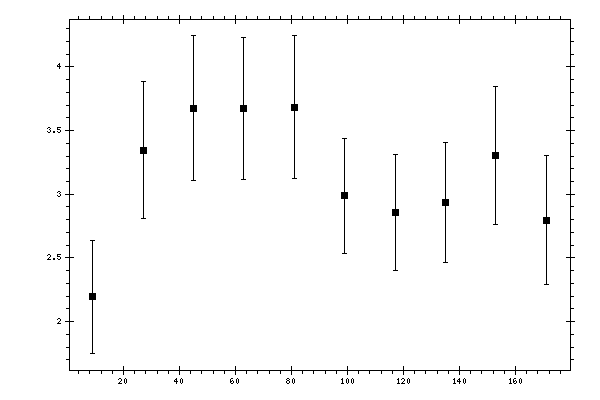

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 2.1936 | 0.441787 |
| 27 | 3.34517 | 0.539112 |
| 45 | 3.67543 | 0.568326 |
| 63 | 3.67247 | 0.555231 |
| 81 | 3.6844 | 0.559522 |
| 99 | 2.98675 | 0.449742 |
| 117 | 2.85525 | 0.453395 |
| 135 | 2.93315 | 0.472354 |
| 153 | 3.30578 | 0.540114 |
| 171 | 2.79718 | 0.50892 |
