Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.8 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

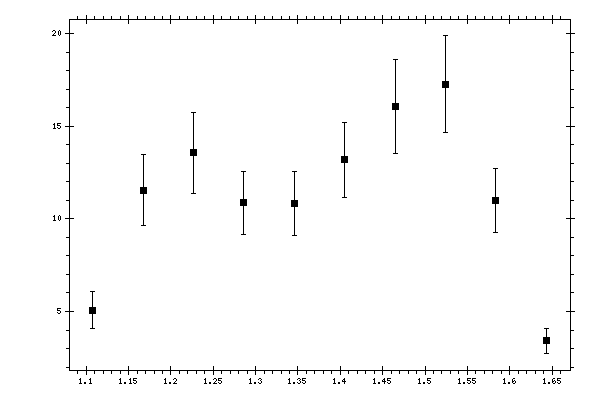

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.10759 | 5.06723 | 1.00479 |
| 1.1671 | 11.5471 | 1.9274 |
| 1.22661 | 13.5591 | 2.17979 |
| 1.28612 | 10.8646 | 1.71607 |
| 1.34563 | 10.8201 | 1.72423 |
| 1.40514 | 13.1908 | 2.03609 |
| 1.46465 | 16.0723 | 2.51711 |
| 1.52416 | 17.2755 | 2.60607 |
| 1.58367 | 11.0166 | 1.73059 |
| 1.64318 | 3.42478 | 0.672902 |
