Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.8 GeV | |
| Ebeam : | 5.75 GeV |
|

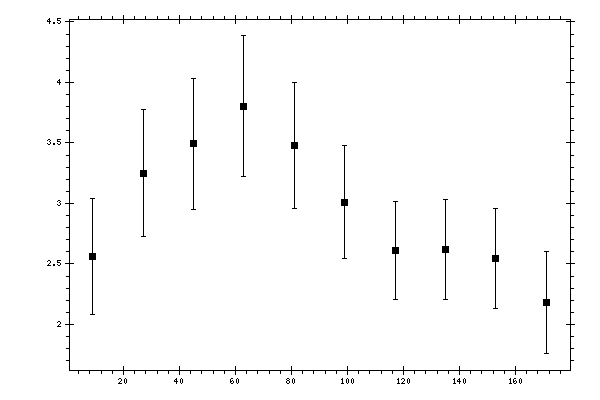

Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Stat. error,
mcb/rad |
|---|---|---|
| 9 | 2.5623 | 0.482237 |
| 27 | 3.25049 | 0.524567 |
| 45 | 3.49116 | 0.543728 |
| 63 | 3.80452 | 0.580131 |
| 81 | 3.47974 | 0.522914 |
| 99 | 3.01134 | 0.4688 |
| 117 | 2.6139 | 0.404888 |
| 135 | 2.62109 | 0.414509 |
| 153 | 2.5434 | 0.415408 |
| 171 | 2.1826 | 0.419648 |
