Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.425 GeV | |
| Ebeam : | 5.75 GeV |
|

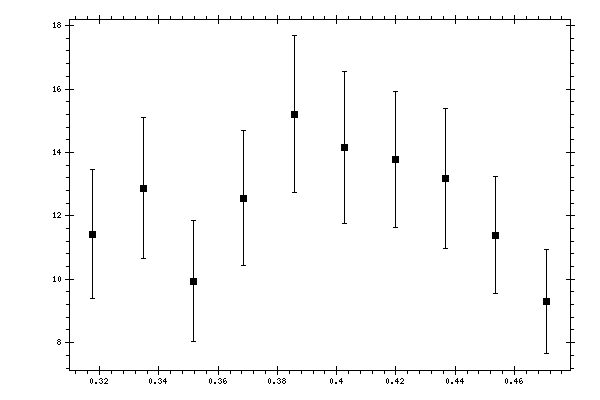

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 0.317645 | 11.4231 | 2.0434 |
| 0.334653 | 12.8769 | 2.23274 |
| 0.351663 | 9.94174 | 1.90832 |
| 0.368672 | 12.5585 | 2.13112 |
| 0.38568 | 15.2125 | 2.46456 |
| 0.40269 | 14.1617 | 2.40035 |
| 0.419699 | 13.7797 | 2.13893 |
| 0.436708 | 13.1787 | 2.22225 |
| 0.453717 | 11.3892 | 1.85372 |
| 0.470726 | 9.30373 | 1.63355 |
