Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.825 GeV | |
| Ebeam : | 5.75 GeV |
|

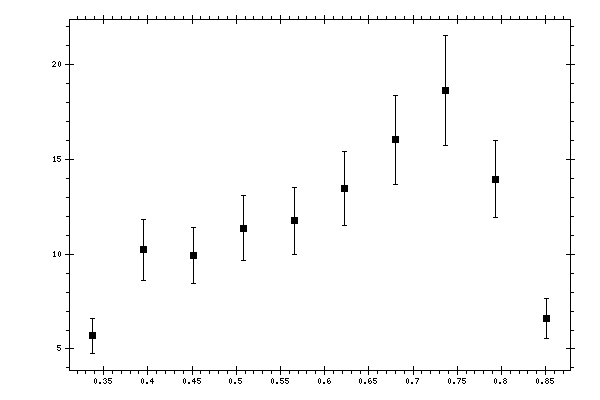

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 0.337644 | 5.70088 | 0.919669 |
| 0.394653 | 10.2192 | 1.59549 |
| 0.451663 | 9.94019 | 1.4762 |
| 0.508672 | 11.3659 | 1.72129 |
| 0.565681 | 11.7521 | 1.77242 |
| 0.622689 | 13.4474 | 1.96602 |
| 0.679699 | 16.0162 | 2.36071 |
| 0.736708 | 18.6008 | 2.89718 |
| 0.793716 | 13.9554 | 2.03077 |
| 0.850725 | 6.61902 | 1.04566 |
