Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.825 GeV | |
| Ebeam : | 5.75 GeV |
|

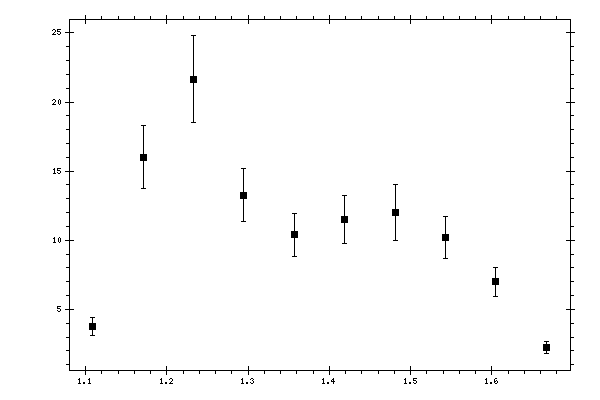

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.10884 | 3.77567 | 0.632439 |
| 1.17085 | 16.0123 | 2.27948 |
| 1.23286 | 21.6549 | 3.13555 |
| 1.29487 | 13.2633 | 1.93235 |
| 1.35688 | 10.4054 | 1.55729 |
| 1.41889 | 11.5332 | 1.74115 |
| 1.4809 | 12.0046 | 2.002 |
| 1.54291 | 10.2295 | 1.5218 |
| 1.60492 | 6.9963 | 1.05535 |
| 1.66693 | 2.25823 | 0.4244 |
