Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.825 GeV | |
| Ebeam : | 5.75 GeV |
|

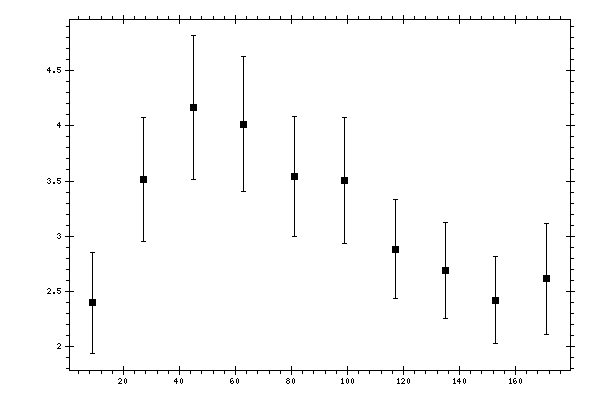

Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Stat. error,
mcb/rad |
|---|---|---|
| 9 | 2.39857 | 0.456002 |
| 27 | 3.51479 | 0.558468 |
| 45 | 4.16349 | 0.649879 |
| 63 | 4.01307 | 0.610027 |
| 81 | 3.54255 | 0.542872 |
| 99 | 3.50436 | 0.571619 |
| 117 | 2.88291 | 0.44704 |
| 135 | 2.69211 | 0.432133 |
| 153 | 2.422 | 0.39098 |
| 171 | 2.6134 | 0.498405 |
