Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.85 GeV | |
| Ebeam : | 5.75 GeV |
|

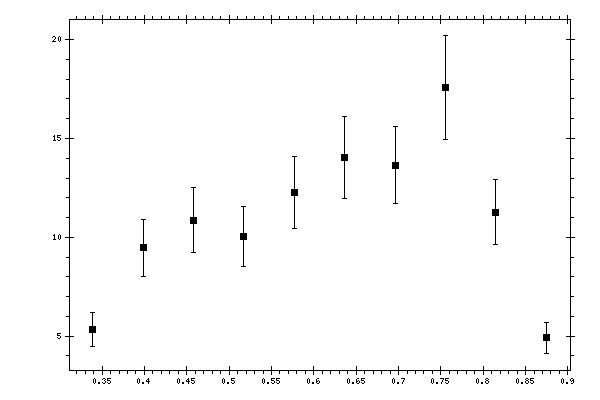

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 0.338894 | 5.36085 | 0.862922 |
| 0.398403 | 9.46926 | 1.44087 |
| 0.457913 | 10.8703 | 1.63135 |
| 0.517421 | 10.0467 | 1.49801 |
| 0.57693 | 12.2828 | 1.82278 |
| 0.63644 | 14.0303 | 2.06111 |
| 0.695948 | 13.6412 | 1.9548 |
| 0.755457 | 17.5571 | 2.63252 |
| 0.814966 | 11.276 | 1.65808 |
| 0.874475 | 4.91098 | 0.76746 |
