Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.875 GeV | |
| Ebeam : | 5.75 GeV |
|

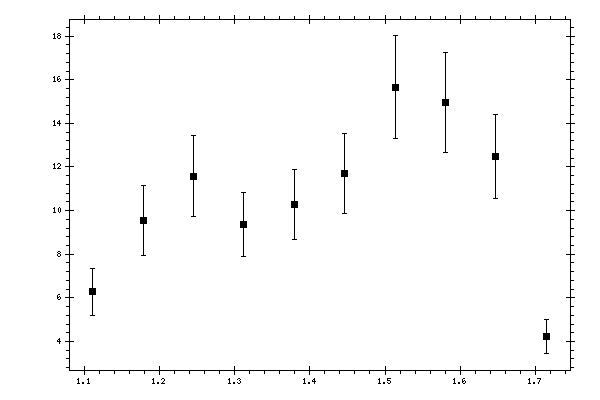

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 1.11134 | 6.27024 | 1.08374 |
| 1.17835 | 9.54811 | 1.61031 |
| 1.24536 | 11.5821 | 1.8522 |
| 1.31237 | 9.37407 | 1.46297 |
| 1.37938 | 10.2931 | 1.59538 |
| 1.44639 | 11.6987 | 1.8309 |
| 1.5134 | 15.6656 | 2.34642 |
| 1.58041 | 14.9665 | 2.28581 |
| 1.64742 | 12.4701 | 1.91893 |
| 1.71443 | 4.23763 | 0.773047 |
