Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.875 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

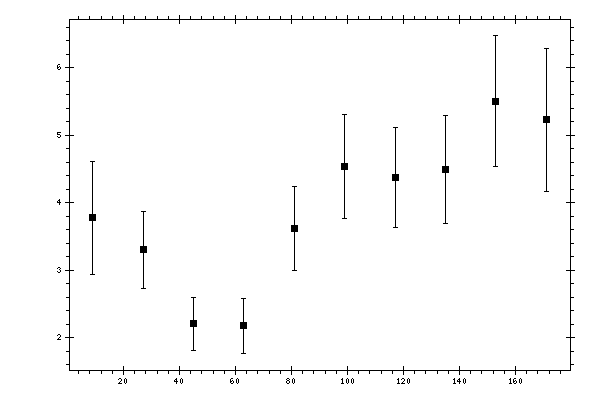

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 3.77742 | 0.833049 |
| 27 | 3.30297 | 0.570073 |
| 45 | 2.20839 | 0.394239 |
| 63 | 2.1772 | 0.402404 |
| 81 | 3.61927 | 0.627655 |
| 99 | 4.53553 | 0.769633 |
| 117 | 4.37415 | 0.73894 |
| 135 | 4.48968 | 0.794695 |
| 153 | 5.50408 | 0.9652 |
| 171 | 5.2276 | 1.05471 |
