Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.9 GeV | |
| Ebeam : | 5.75 GeV |
|

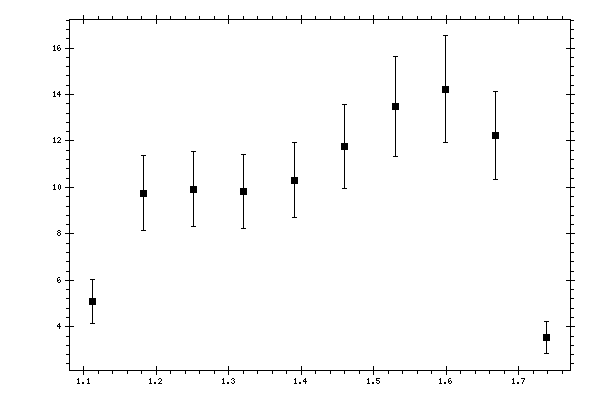

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 1.11259 | 5.09366 | 0.939699 |
| 1.1821 | 9.7538 | 1.61527 |
| 1.25161 | 9.91937 | 1.60931 |
| 1.32112 | 9.80501 | 1.59412 |
| 1.39063 | 10.3111 | 1.61293 |
| 1.46014 | 11.7572 | 1.81665 |
| 1.52965 | 13.4873 | 2.16992 |
| 1.59916 | 14.2337 | 2.29338 |
| 1.66867 | 12.2253 | 1.89884 |
| 1.73818 | 3.53962 | 0.674879 |
