Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.9 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

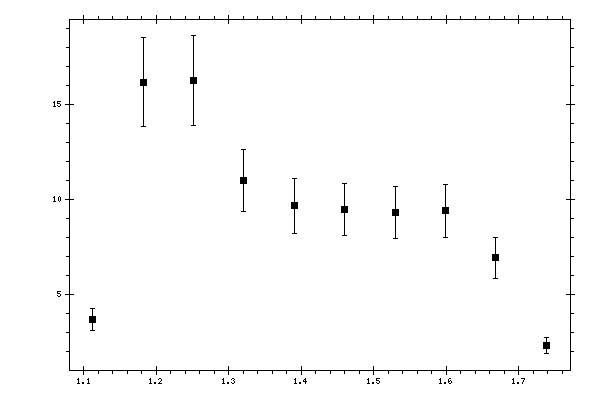

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.11259 | 3.68102 | 0.589481 |
| 1.1821 | 16.1667 | 2.34912 |
| 1.25161 | 16.2246 | 2.36926 |
| 1.32112 | 10.9896 | 1.64193 |
| 1.39063 | 9.64768 | 1.42647 |
| 1.46014 | 9.46738 | 1.38587 |
| 1.52965 | 9.31684 | 1.37106 |
| 1.59916 | 9.39637 | 1.39266 |
| 1.66867 | 6.91429 | 1.07588 |
| 1.73818 | 2.32096 | 0.414257 |
