Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.925 GeV | |
| Ebeam : | 5.75 GeV |
|

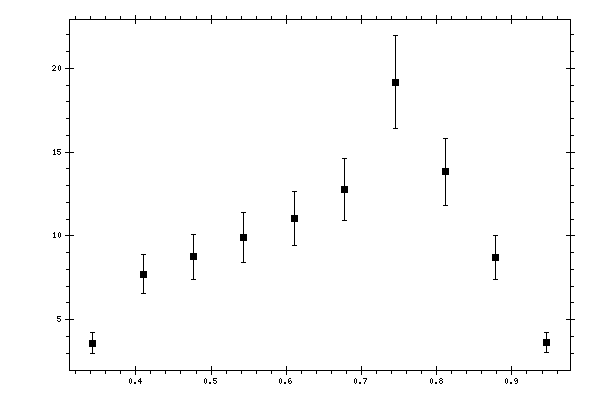

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 0.342644 | 3.60723 | 0.602028 |
| 0.409653 | 7.72811 | 1.18225 |
| 0.476662 | 8.74771 | 1.32681 |
| 0.543671 | 9.90777 | 1.48915 |
| 0.610681 | 11.0188 | 1.61714 |
| 0.677689 | 12.7835 | 1.85374 |
| 0.744699 | 19.17 | 2.77555 |
| 0.811707 | 13.8317 | 1.99476 |
| 0.878717 | 8.71451 | 1.33458 |
| 0.945726 | 3.64195 | 0.611828 |
