Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.925 GeV | |
| Ebeam : | 5.75 GeV |
|

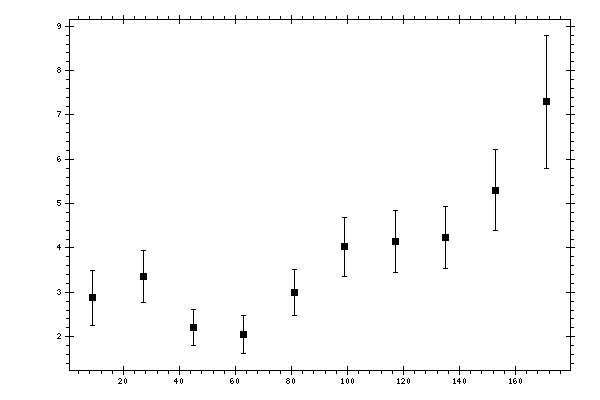

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 2.87557 | 0.626264 |
| 27 | 3.3603 | 0.590489 |
| 45 | 2.2095 | 0.401368 |
| 63 | 2.05672 | 0.428854 |
| 81 | 3.00212 | 0.521073 |
| 99 | 4.02311 | 0.665279 |
| 117 | 4.14494 | 0.693027 |
| 135 | 4.23423 | 0.707535 |
| 153 | 5.30151 | 0.918167 |
| 171 | 7.29341 | 1.49093 |
