Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.95 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

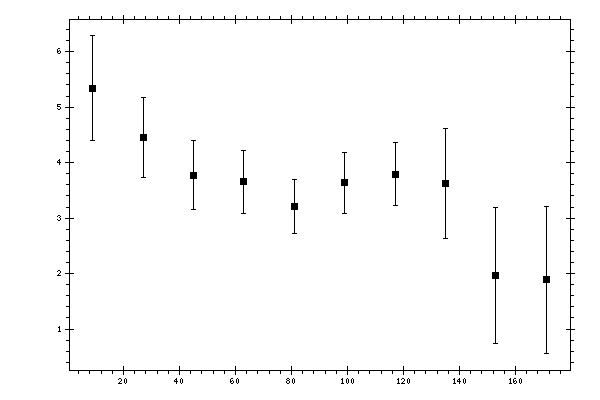

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 5.33696 | 0.947218 |
| 27 | 4.44927 | 0.724664 |
| 45 | 3.77287 | 0.624675 |
| 63 | 3.65161 | 0.570977 |
| 81 | 3.21051 | 0.491073 |
| 99 | 3.63705 | 0.551866 |
| 117 | 3.79461 | 0.575255 |
| 135 | 3.61744 | 0.989247 |
| 153 | 1.95811 | 1.22441 |
| 171 | 1.88588 | 1.3194 |
