Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.4 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

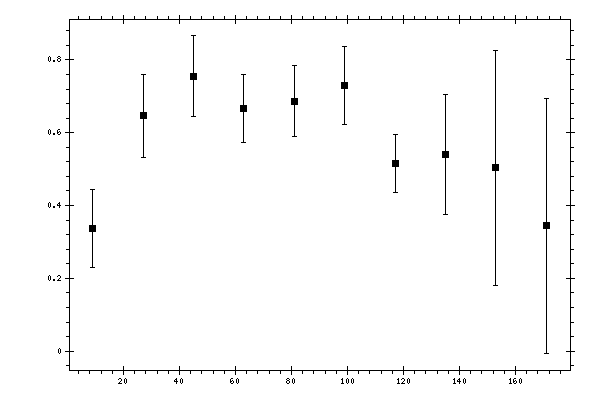

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.336232 | 0.107791 |
| 27 | 0.646521 | 0.114567 |
| 45 | 0.755241 | 0.11078 |
| 63 | 0.666654 | 0.0927618 |
| 81 | 0.686911 | 0.0970864 |
| 99 | 0.729568 | 0.10597 |
| 117 | 0.514899 | 0.0793276 |
| 135 | 0.540791 | 0.165082 |
| 153 | 0.503642 | 0.322524 |
| 171 | 0.344192 | 0.349598 |
