Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.425 GeV | |
| Ebeam : | 5.75 GeV |
|

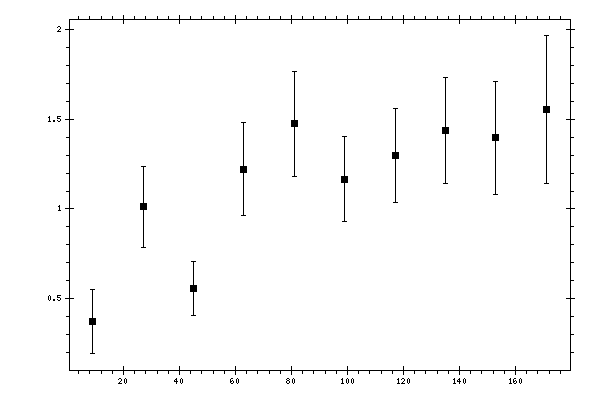

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.374433 | 0.177878 |
| 27 | 1.01323 | 0.226051 |
| 45 | 0.557179 | 0.150865 |
| 63 | 1.22055 | 0.25874 |
| 81 | 1.47371 | 0.291956 |
| 99 | 1.16553 | 0.23718 |
| 117 | 1.29792 | 0.26022 |
| 135 | 1.43752 | 0.294502 |
| 153 | 1.39617 | 0.313514 |
| 171 | 1.5532 | 0.411671 |
