Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.425 GeV | |
| Ebeam : | 5.75 GeV |
|

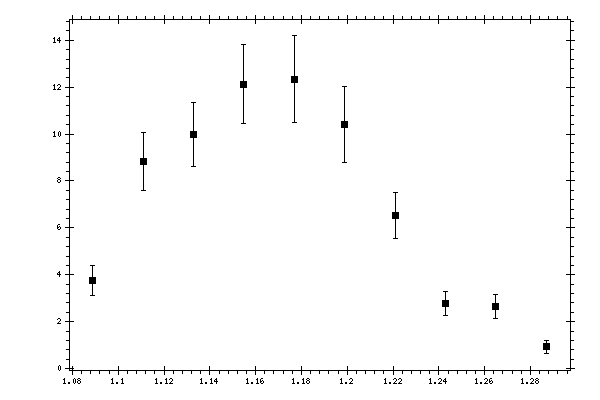

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.08884 | 3.76941 | 0.644824 |
| 1.11085 | 8.83194 | 1.22073 |
| 1.13286 | 9.99031 | 1.36659 |
| 1.15487 | 12.1283 | 1.68862 |
| 1.17688 | 12.3456 | 1.84217 |
| 1.19889 | 10.4131 | 1.61691 |
| 1.2209 | 6.51512 | 0.983553 |
| 1.24291 | 2.7604 | 0.511727 |
| 1.26492 | 2.64551 | 0.507428 |
| 1.28693 | 0.927034 | 0.266125 |
