Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.425 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

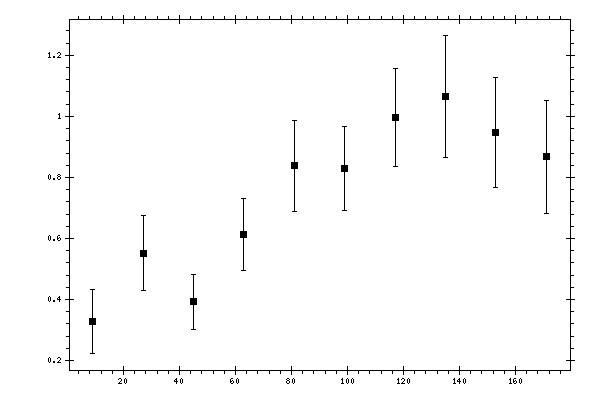

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
|---|---|---|
| 9 | 0.328857 | 0.104626 |
| 27 | 0.551166 | 0.122992 |
| 45 | 0.39219 | 0.0894471 |
| 63 | 0.613921 | 0.117791 |
| 81 | 0.837514 | 0.148557 |
| 99 | 0.829293 | 0.136544 |
| 117 | 0.996622 | 0.160986 |
| 135 | 1.06528 | 0.198611 |
| 153 | 0.948311 | 0.180528 |
| 171 | 0.867933 | 0.184613 |
