Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.45 GeV | |
| Ebeam : | 5.75 GeV |
|

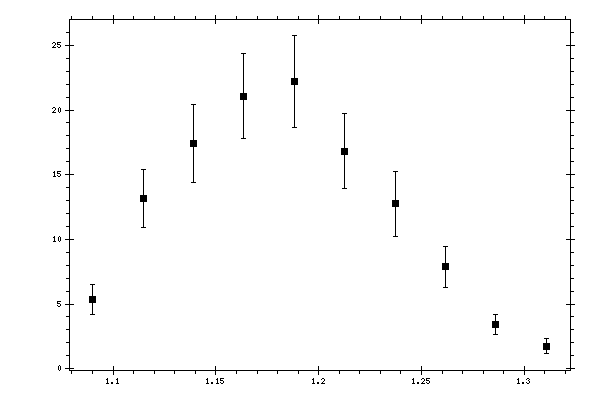

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.09009 | 5.32794 | 1.1668 |
| 1.1146 | 13.1587 | 2.23989 |
| 1.13911 | 17.4198 | 2.99877 |
| 1.16362 | 21.0821 | 3.31697 |
| 1.18813 | 22.1828 | 3.55537 |
| 1.21264 | 16.8144 | 2.88478 |
| 1.23715 | 12.7394 | 2.53301 |
| 1.26166 | 7.86877 | 1.55867 |
| 1.28617 | 3.41644 | 0.810796 |
| 1.31068 | 1.74971 | 0.547449 |
