Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.45 GeV | |
| Ebeam : | 5.75 GeV |
|

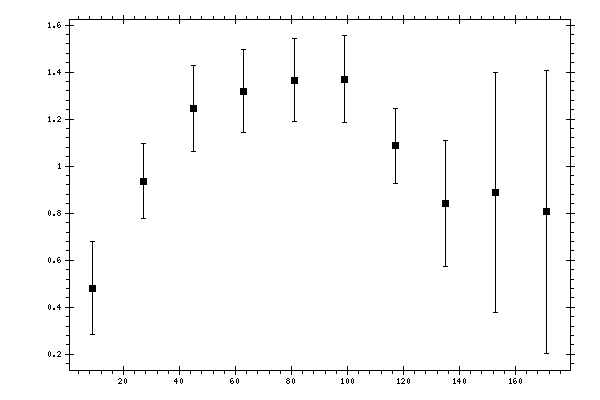

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.48144 | 0.196591 |
| 27 | 0.936921 | 0.159754 |
| 45 | 1.24481 | 0.184369 |
| 63 | 1.3195 | 0.178323 |
| 81 | 1.36629 | 0.177949 |
| 99 | 1.37046 | 0.183515 |
| 117 | 1.0868 | 0.159429 |
| 135 | 0.842137 | 0.266647 |
| 153 | 0.888153 | 0.511864 |
| 171 | 0.805882 | 0.600638 |
