Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.5 GeV | |
| Ebeam : | 5.75 GeV |
|

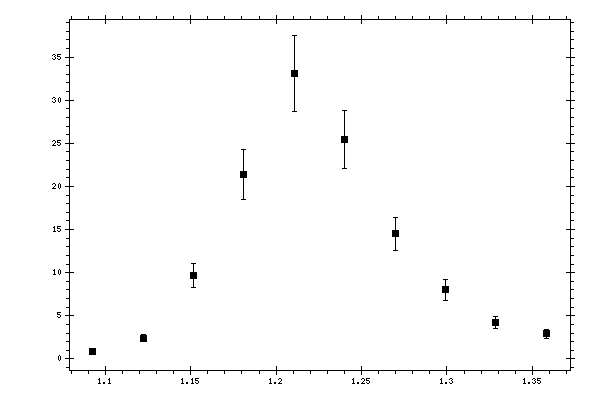

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.09259 | 0.912777 | 0.240345 |
| 1.1221 | 2.39821 | 0.432557 |
| 1.15161 | 9.6729 | 1.40537 |
| 1.18112 | 21.3529 | 2.8894 |
| 1.21063 | 33.0671 | 4.39825 |
| 1.24014 | 25.4334 | 3.36013 |
| 1.26965 | 14.5046 | 1.92287 |
| 1.29916 | 8.00301 | 1.19448 |
| 1.32867 | 4.24416 | 0.668749 |
| 1.35818 | 2.91335 | 0.510903 |
