Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.5 GeV | |
| Ebeam : | 5.75 GeV |
|

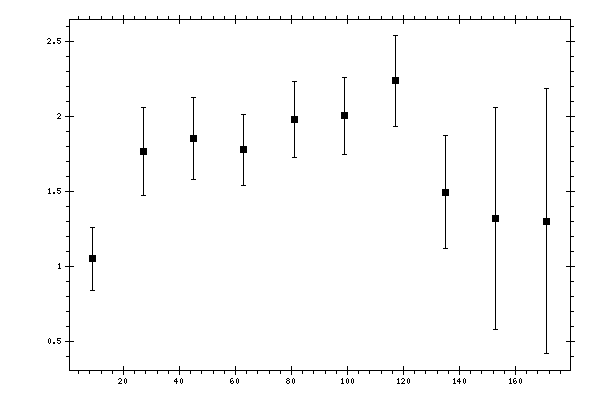

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 1.0534 | 0.210238 |
| 27 | 1.76892 | 0.291128 |
| 45 | 1.85624 | 0.274634 |
| 63 | 1.78118 | 0.235465 |
| 81 | 1.98455 | 0.252027 |
| 99 | 2.00898 | 0.256982 |
| 117 | 2.23962 | 0.30106 |
| 135 | 1.49783 | 0.376057 |
| 153 | 1.32133 | 0.741626 |
| 171 | 1.30553 | 0.881167 |
